KIND Orbit Robot Camera PGM-ZP30R-880

KIND Orbit robot camera ZP30R-880′s motion shooting is very stable, whether it is moving left and right, rising and falling, or rising and falling while moving. The stable and all-round motion shooting provides a high-quality and low-cost working platform for our shooting work.

1. Camera: 4K60P full frame movie camera and full frame zoom lens 70mm-200mm;

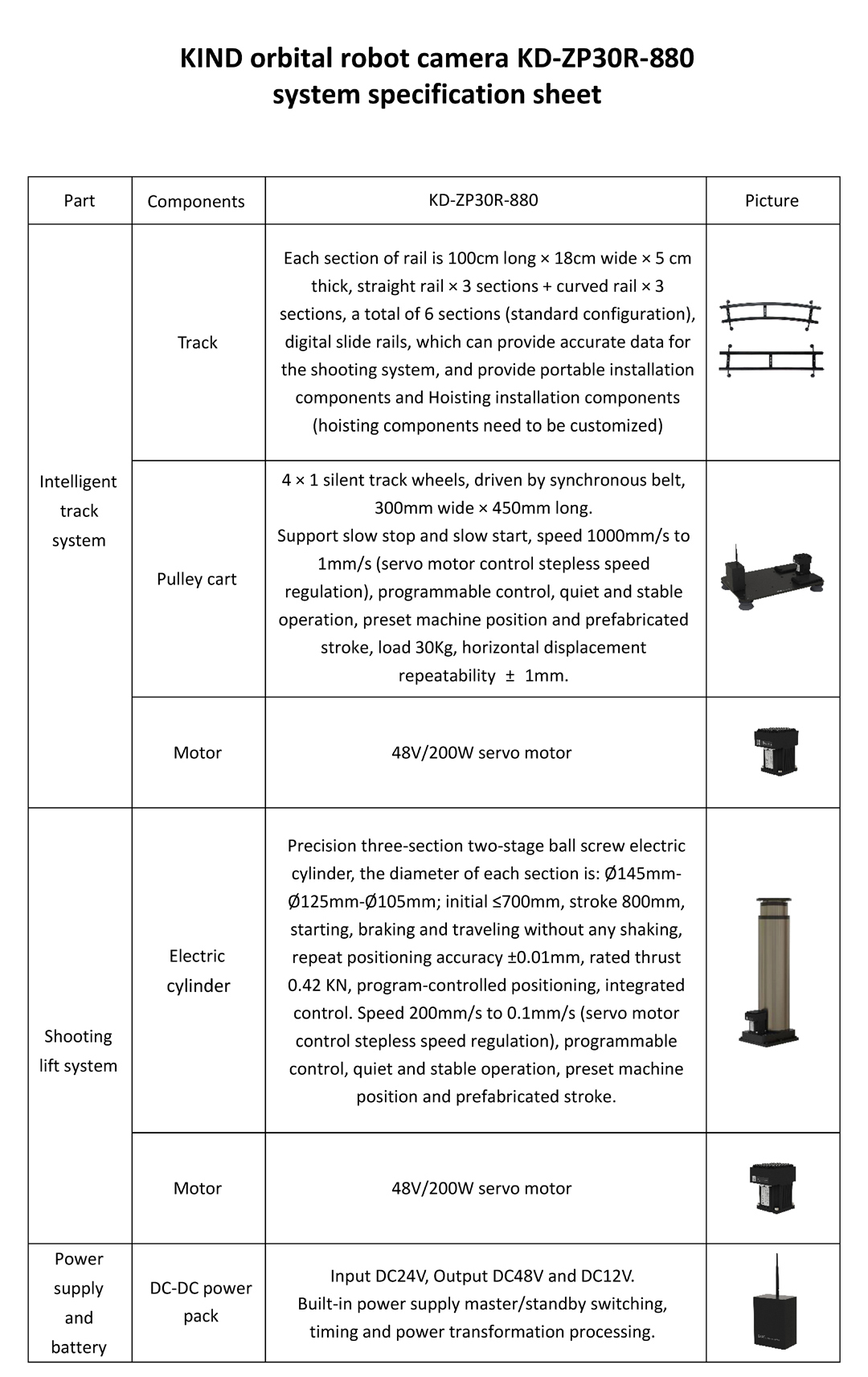

2. Lifting: Precision three-stage ball screw servo electric cylinder lifting system;

3. Height: initial ≤700mm, stroke 800mm, repeat positioning accuracy ±0.01mm; speed: 250mm/s to 0.1mm/s, full servo stepless speed regulation;

4. Pulley cart: 4×1 silent track wheel, synchronous belt drive, full servo intelligent control movement, stepless speed regulation, repeat positioning accuracy ± 1mm, speed: 100cm/s to 0.5cm/s;

5. Track: Intelligent shooting and splicing track, standard three bends and three straight, 6 meters in total;

6. Motor: one for lifting and one for translation, 48V/200W servo motor and electric control system;

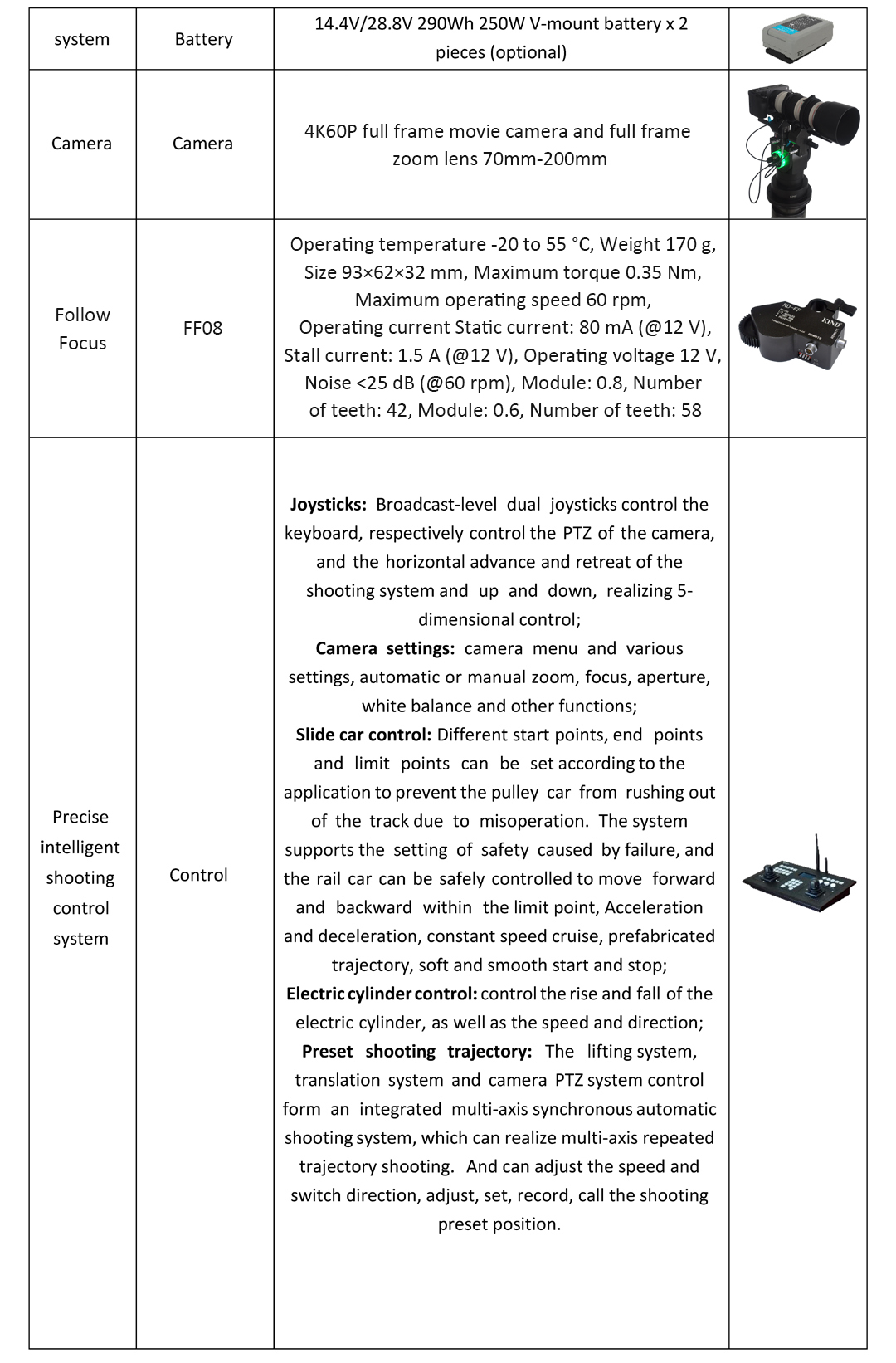

7. Control keyboard: precise intelligent shooting trajectory control system and control keyboard;

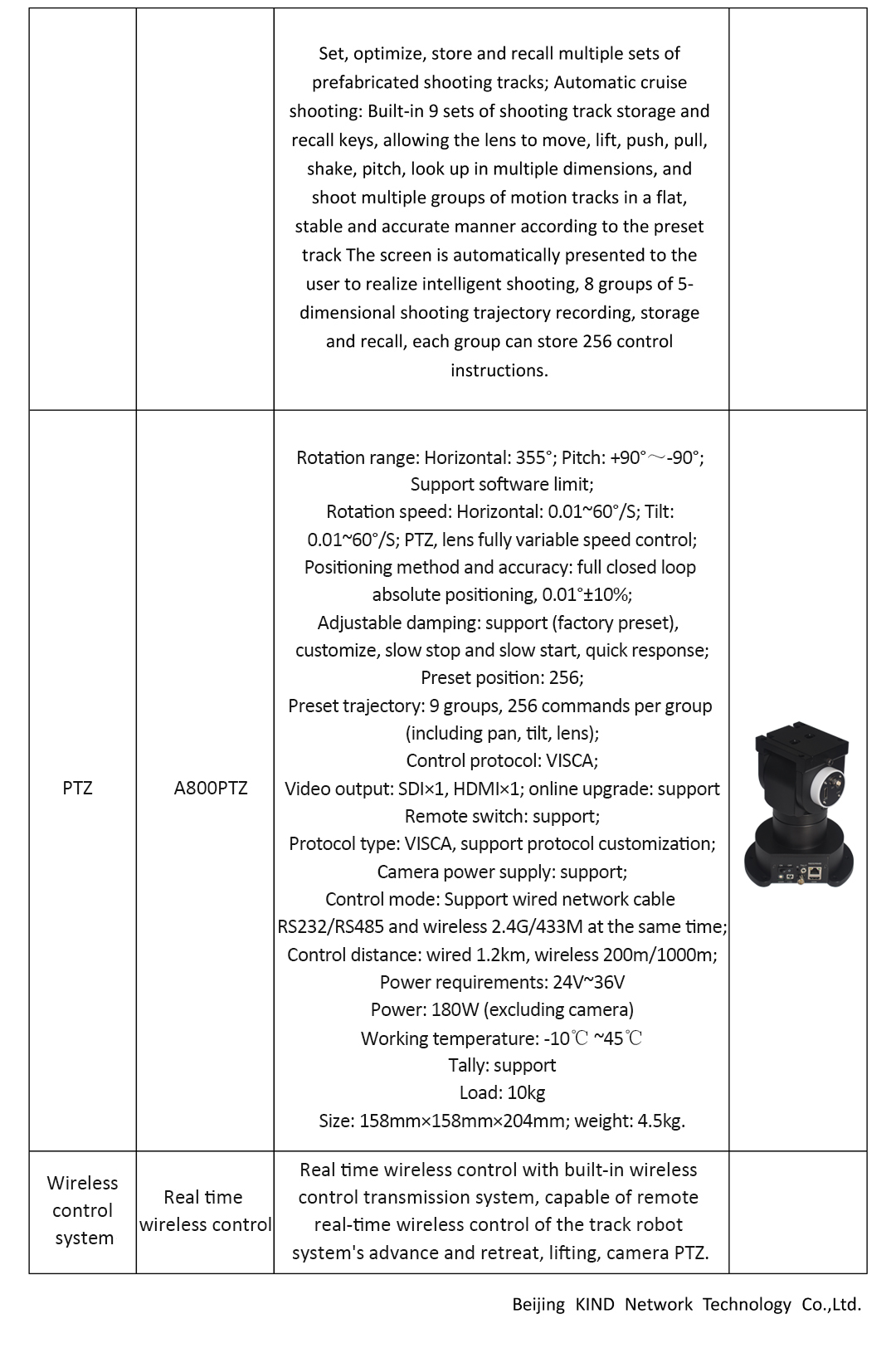

8. PTZ: broadcast fully servo PMG-A800PTZ;

9. Follow Focus: broadcast follow focus supports cascading PMG-FF06/08;

10. Transmission: wireless control system;

11. Battery: 14.4V/28.8V 290Wh V-port battery × 2 (optional);

12. Installation: support mobile installation and fixed hoisting, and provide all installation parts.
